Hunter Anti-Siphon Valve Drip Zone Assembly
$69.99
Sale price
$69.99
Regular price
$87.99
Save $18.00 (20%)
Ships in 1 Business Day
Key Features
Description

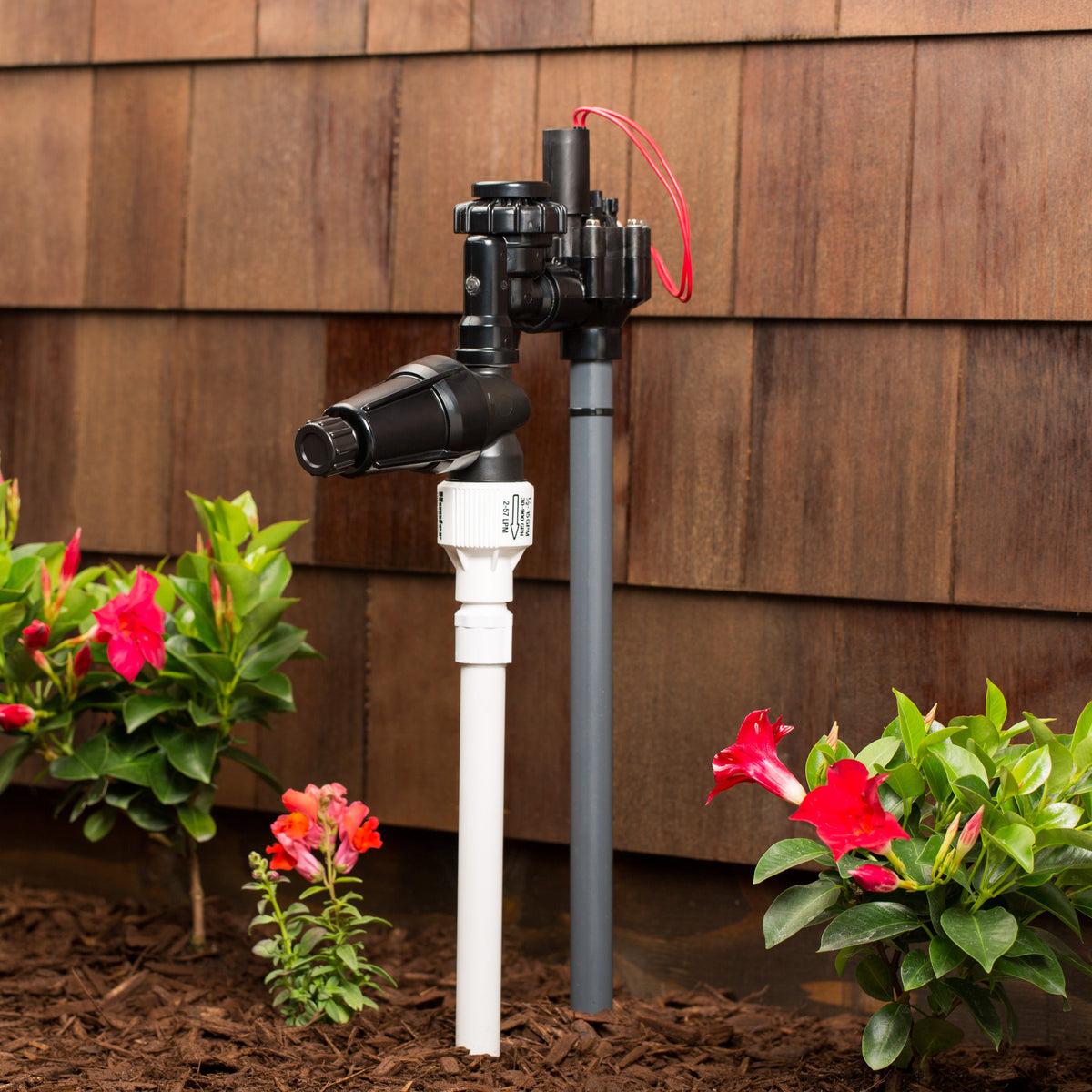

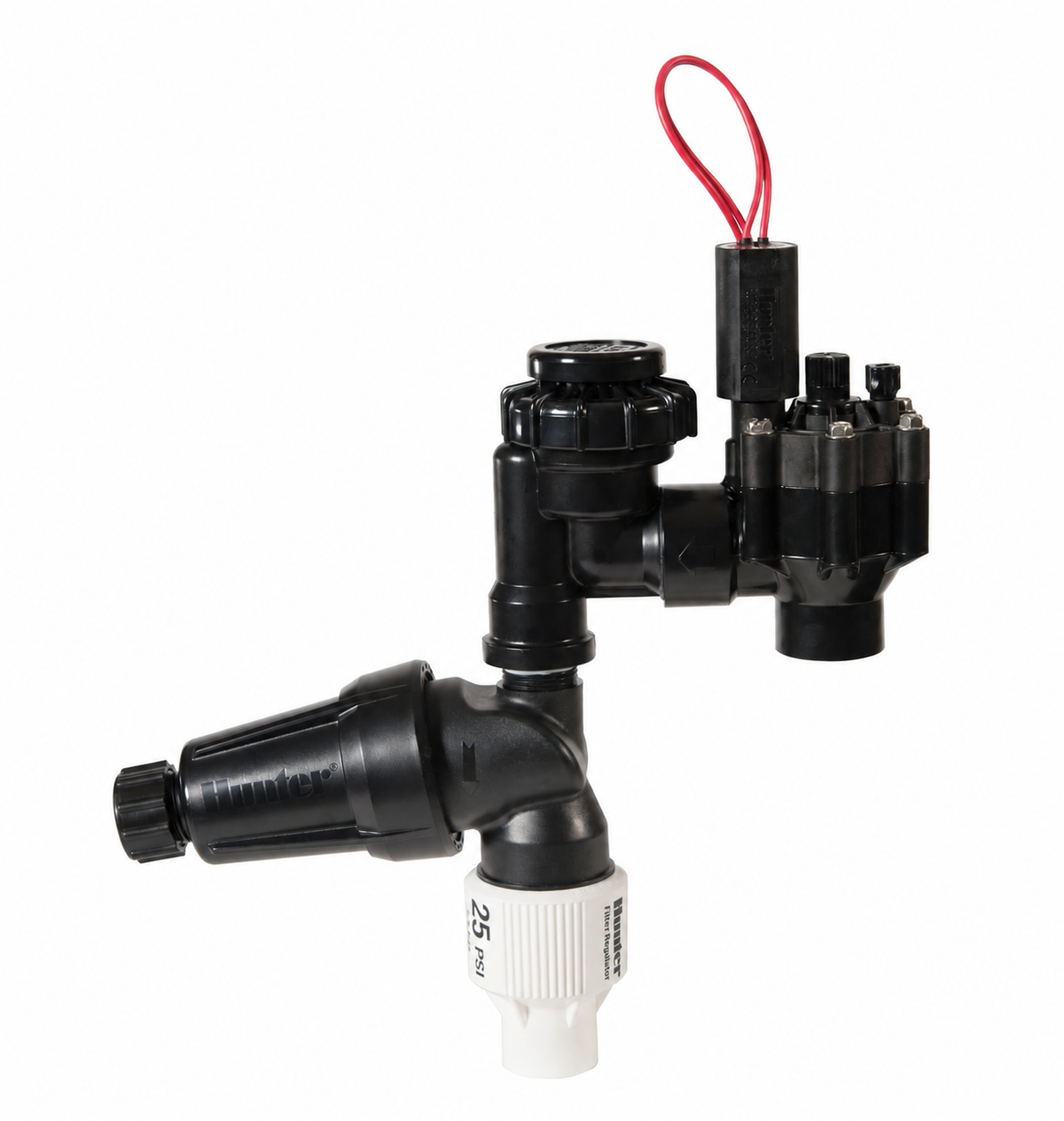

Simplify automatic drip irrigation with the Hunter Anti-Siphon Valve Drip Zone Assembly, a factory-assembled control zone that combines valve control, filtration and pressure regulation in one package. Designed for anti-siphon drip applications, the assembly uses a rugged Hunter PGV valve, a 150-mesh stainless steel screen and built-in regulation to maintain a consistent 25 PSI outlet pressure. The 3/4 in. inlet and 0.5 to 15 GPM flow range support many residential and light commercial micro-irrigation systems. This preassembled solution helps protect drip emitters from debris while reducing the number of separate components that must be selected and installed. Choose it when the irrigation design specifically calls for an anti-siphon drip control zone.
Simplify automatic drip irrigation with the Hunter Anti-Siphon Valve Drip Zone Assembly, a factory-assembled control zone that combines valve control, filtration and pressure regulation in one package. Designed for anti-siphon drip applications, the assembly uses a rugged Hunter PGV valve, a 150-mesh stainless steel screen and built-in regulation to maintain a consistent 25 PSI outlet pressure. The 3/4 in. inlet and 0.5 to 15 GPM flow range support many residential and light commercial micro-irrigation systems. This preassembled solution helps protect drip emitters from debris while reducing the number of separate components that must be selected and installed. Choose it when the irrigation design specifically calls for an anti-siphon drip control zone.
Additional Details
SKU: ACZ07525
Made in Mexico
Specifications
Our products are manufactured both locally and globally. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
Trusted Performance
Built to Last
Efficient by Design
Quick Start Guide
This video guide gives you a clear look at how the Drip Zone Assembly is installed, adjusted, and used in the field. Use it as a helpful resource to better understand the product and get more from your irrigation system.
Compatible Products
Compare Similar Products
| Rating | ||||
| Inlet Size | 3/4" | 1" | 1" | 3/4" or 1" |
| Flow (GPM) | 0.5 to 15 | 0.5 to 15.0 | 0.2 to 40 | 0.2 to 40 |
| Price | $69.99 | $70.99 | $24.99 | $27.99 |
Resources
Frequently Asked Questions
Does the Hunter Anti-Siphon Valve Drip Zone Assembly include filtration?
Yes. It includes a 150-mesh stainless steel screen.
What pressure does the Anti-Siphon Drip Zone Assembly regulate to?
Approximately 25 PSI.
When should I choose the Anti-Siphon Drip Zone Assembly instead of the In-Line version?
Choose the Anti-Siphon version when the irrigation design specifically requires an anti-siphon valve configuration.
Does the Anti-Siphon Drip Zone Assembly come preassembled?
Yes. It is supplied as a factory-assembled control-zone package.
